Kubernetes Network: Why Container Networking is Hard
February 24, 2025
The Container Conundrum
Jake stared at his monitor, frustration etching lines across his forehead. What should have been a simple deployment had turned into a networking nightmare. Another microservice refused to communicate, another port seemingly lost in the digital abyss. Welcome to the world of Kubernetes networking—where simplicity promises to meet complexity head-on.
Modern software development looks different from it did a decade ago. Containers promised us a revolution: deploy anywhere, scale everything, break free from infrastructure constraints. Kubernetes emerged as the conductor of this containerized orchestra. But here's the twist—while containers made deployment easier, networking remained a labyrinth of challenges waiting to trap even the most experienced engineers.
Fundamental Networking Concepts in Kubernetes: A New Paradigm
What Makes Kubernetes Networking Different?
Traditional networking was straightforward. Servers had IP addresses, routes were static, and firewalls stood guard at predictable boundaries. Kubernetes threw that entire playbook out the window.
Networking isn't just about connecting points A to B in the Kubernetes universe. It's about creating a dynamic, fluid environment where:
Containers appear and disappear in milliseconds
IP addresses are ephemeral
Entire applications can scale horizontally in seconds
Security policies must be as flexible as the infrastructure itself
Fundamental principles define this new networking landscape:
Every Pod Gets an IP - Each container (Pod) receives its unique IP address. This might sound simple, but it's revolutionary. Imagine a world where every application instance can be directly addressable, regardless of which node it's running on.
Flat Network Topology - Kubernetes enforces a flat network where all pods can communicate with each other across nodes without complex NAT configurations. There are no more complex routing tables or manual network mappings.
Service Abstraction - Instead of managing individual container IPs, Kubernetes introduces services—logical abstractions that provide a stable endpoint for dynamic, changing pod collections.
The Core Networking Challenges
Why isn't container networking more complex than it sounds? Because we're dealing with a distributed system that must:
Provide unique addressing for thousands of ephemeral containers
Enable seamless communication across potentially different underlying infrastructure
Maintain security and performance
Work consistently across cloud providers, on-premise data centers, and hybrid environments.
It's like building a highway system where roads can instantaneously appear and disappear, where vehicles can teleport between lanes, and where traffic rules must adapt in real time.
A New Mental Model
Forget everything you know about traditional networking. In Kubernetes, network design is less about fixed infrastructure and more about creating flexible, self-healing communication pathways.
Think of it like a living, breathing organism. Pods are cells that can multiply, migrate, and transform. Services are the nervous system, routing signals precisely where they need to go. And the underlying network? It's the bloodstream, carrying information seamlessly and efficiently.
As we explore Kubernetes networking further, remember that complexity is not a bug. It's a feature designed to solve the intricate challenges of modern distributed computing.
The Pod Networking Maze
Picture a bustling city where every resident can instantly communicate with any other resident, regardless of their neighborhood. That's the idea of Kubernetes pod networking—a world where containers communicate seamlessly across nodes, clusters, and even cloud environments.

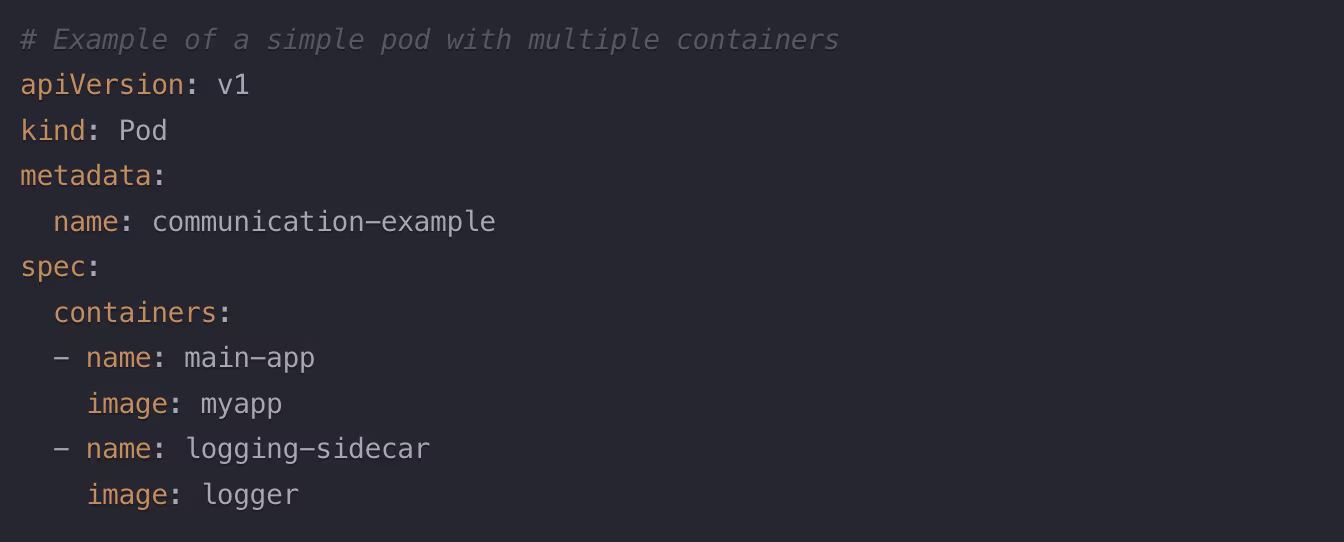

How Pods Talk to Each Other
In Kubernetes, a pod is more than just a container. It's a logical host that can contain one or more containers sharing the same network namespace. This means all containers in a pod share the same IP address and can communicate via localhost.
In this configuration, the main-app and logging-sidecar containers can communicate directly through localhost, sharing network resources.
The Cluster Network: A Unified Communication Landscape
Kubernetes enforces a fundamental networking rule: all pods can communicate with all other pods across the cluster without NAT (Network Address Translation). This might sound simple, but it's revolutionary.
Key networking principles:
Each Pod gets a unique IP address
Pods on the same node communicate directly
Pods on different nodes can communicate as if they were on the same network
No manual port mapping or complex routing required
Practical Networking Challenges
Despite the elegant design, pod networking isn't magic. Challenges emerge:
IP address management across large clusters
Ensuring unique pod identities
Maintaining performance as clusters scale
Handling network policies and security constraints
Service Discovery and Load Balancing
Services in Kubernetes are the traffic conductors, ensuring that requests find their way to the right pods, even as those pods dynamically appear and disappear.

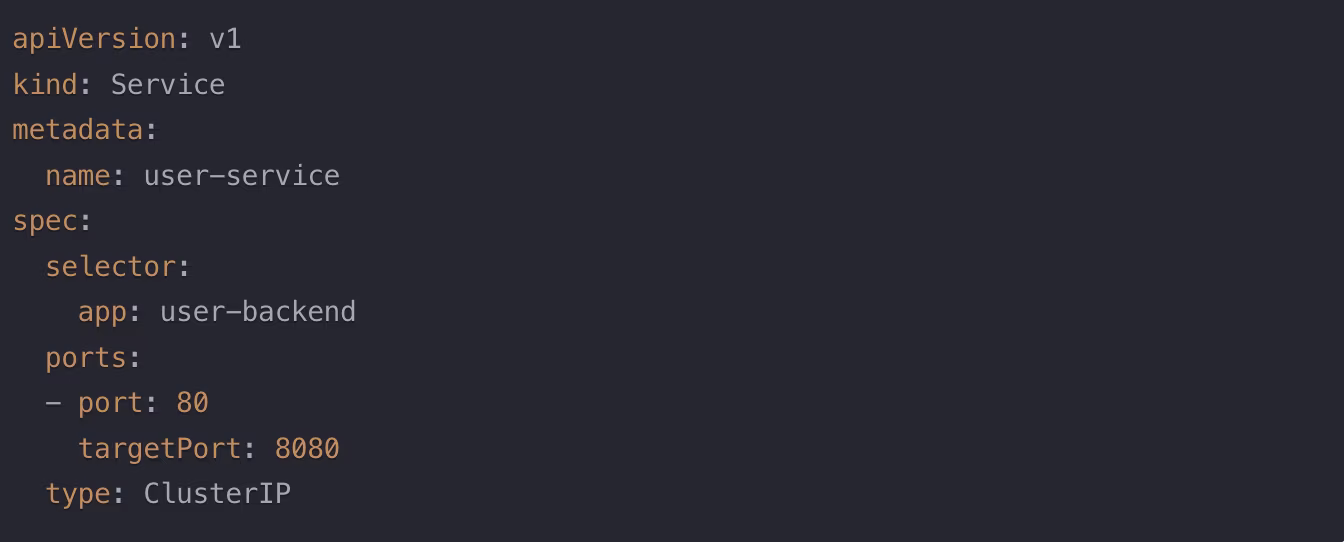

The Service Abstraction
Unlike traditional infrastructure, Kubernetes services provide a stable endpoint for a dynamic set of pods. Imagine a phone number that always reaches the right department, even if the individual staff members change constantly.
This service configuration:
Selects pods with the label app: user-backend
Exposes them internally at port 80
Automatically load balances traffic across matching pods
Service Types: More Than One Way to Expose
Kubernetes offers multiple service types to suit different networking needs:
ClusterIP: Default internal service accessible only within the cluster
NodePort: Exposes the service on a static port on each node's IP
LoadBalancer: Creates an external load balancer (typically in cloud environments)
ExternalName: Maps the service to an external DNS name
Real-World Load Balancing
When a request comes to a service, Kubernetes uses sophisticated load balancing:
Randomly distributes traffic across healthy pods
Tracks pod health and removes unhealthy instances
Can implement advanced routing like weighted distribution
The Magic Behind the Scenes
Service discovery in Kubernetes is powered by:
Internal DNS resolution
Kubernetes API server tracking pod and service states
Continuous reconciliation of desired vs. actual network state
The result? A network that feels almost magical—stable, resilient, and incredibly flexible.
Network Policies: The Security Frontier
In the complex world of Kubernetes networking, security isn't an afterthought—it's a fundamental design principle. Network policies represent the critical security layer that allows you to control and restrict how pods communicate with each other and external endpoints. Think of them as the firewall rules of the Kubernetes ecosystem, providing granular control over traffic flow at the pod level.
Understanding Network Policies
Network policies are Kubernetes resources that define precise rules for how groups of pods can communicate. Unlike traditional network security approaches that operate at the infrastructure level, network policies work directly within the container ecosystem, offering unprecedented flexibility and control.
Key characteristics of network policies include:
Selective Control: Policies can target specific pods using label selectors
Ingress and Egress Rules: Control both incoming and outgoing traffic
Granular Specification: Define rules based on pod labels, namespaces, and IP blocks
Default Deny Model: By default, pods are fully isolated when policies are applied
Implementing Least-Privilege Networking
The principle of least privilege is paramount in modern cloud-native security. Network policies enable you to implement this principle by restricting pod communications to only what is necessary. This minimizes the potential attack surface and prevents unauthorized interactions between components.

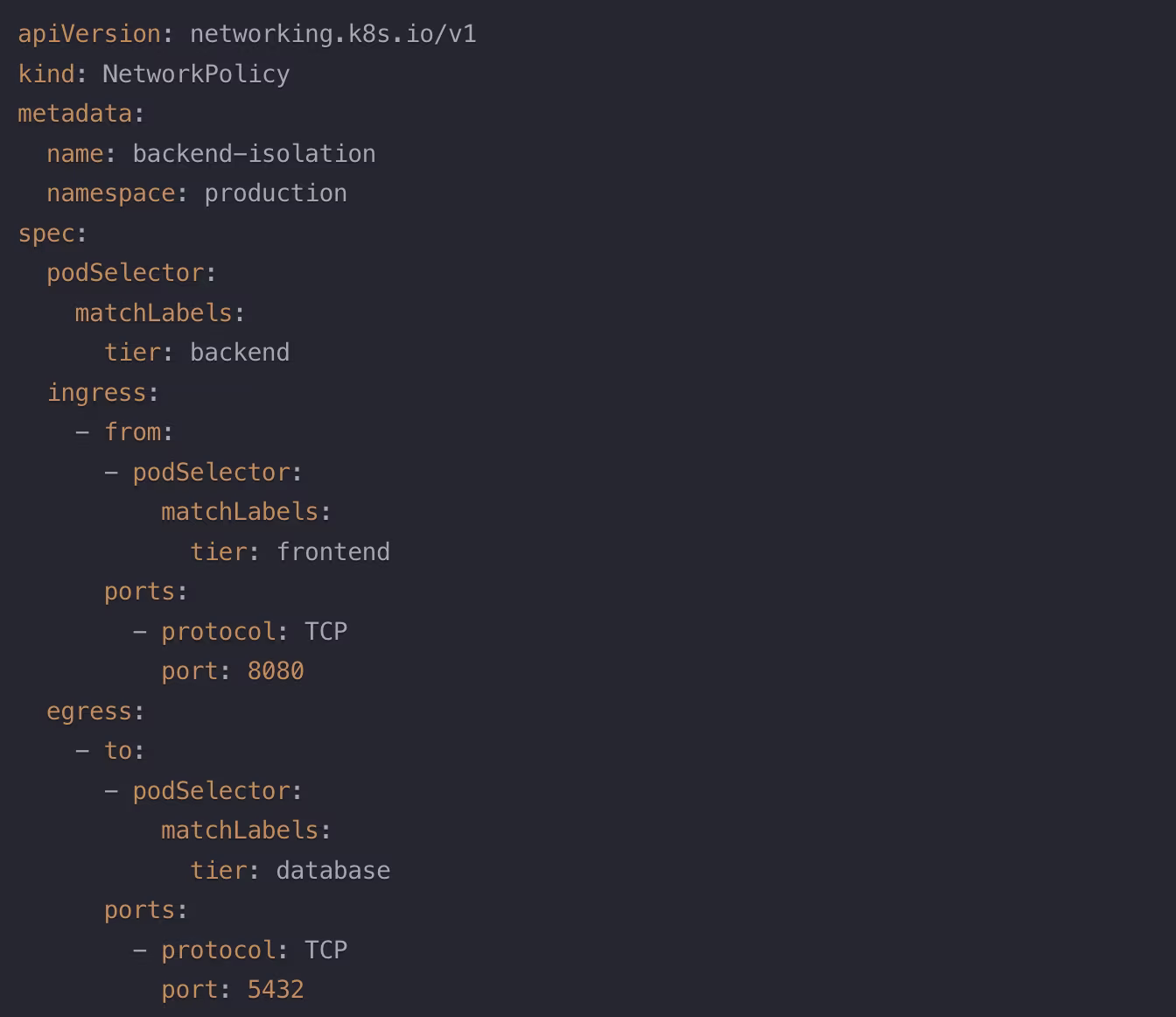

Practical Example: Restricting Pod Communications
Here's a comprehensive network policy that demonstrates granular control:
In this example, the network policy:
Targets backend pods in the production namespace
Allows incoming traffic only from frontend pods on port 8080
Permits outgoing traffic only to database pods on port 5432
Best Practices for Network Policies
Start with a Restrictive Baseline: Begin with a default-deny configuration
Use Clear Labeling: Leverage Kubernetes labels for precise policy targeting
Version Control Policies: Treat network policies like infrastructure code
Regularly Audit and Update: Continuously review and refine policies
Multi-Node Networking Challenges
As Kubernetes deployments scale beyond a single node, networking transforms from a local configuration challenge to a complex distributed systems problem. Understanding multi-node networking is crucial for building robust, scalable Kubernetes environments.
The Container Network Interface (CNI)
The Container Network Interface (CNI) is the critical abstraction that enables flexible, pluggable networking across Kubernetes clusters. It defines a standardized protocol for configuring network interfaces in Linux containers, allowing different networking solutions to integrate seamlessly.
Key CNI Responsibilities
Allocating IP addresses to pods
Configuring network routes
Ensuring pod-to-pod communication across nodes
Supporting advanced networking features
Networking Plugin Considerations
Choosing the right CNI plugin is a strategic decision that impacts cluster performance, scalability, and complexity. Popular options include:
Flannel:
Simple, straightforward overlay networking
Good for small to medium clusters
Limited advanced features
Calico:
High-performance, layer 3 networking
Strong network policy support
Excellent for large, complex environments
Cilium:
eBPF-powered networking
Advanced observability
Built-in security features
Multi-Node Network Topology
In a multi-node Kubernetes cluster, networking becomes a sophisticated ecosystem of interconnected components:
Nodes: Physical or virtual machines running Kubernetes
Pod Network: Overlay or underlay network enabling pod-to-pod communication
Service Network: Virtual network for service discovery and load balancing
Cluster Network: Aggregation of node, Pod, and service networks
Practical Challenges and Considerations
IP Address Management: Ensure unique pod IP allocation across nodes
Network Performance: Minimize overhead from network encapsulation
By understanding these multi-node networking intricacies, DevOps teams can design more resilient, performant Kubernetes deployments that scale efficiently and securely.
The Human Element: Navigating the Complexity of Container Networking
Kubernetes networking is more than just a technical challenge—it's a cognitive puzzle that tests the limits of human understanding. The complexity isn't just in the technology but in the mental models we construct to comprehend distributed systems.
The Psychological Landscape of Container Networking
Understanding Kubernetes networking requires a fundamental shift in thinking. Traditional network administrators and developers must unlearn many assumptions about network architecture and embrace a more dynamic, ephemeral approach to connectivity.
Mental Models for Container Networking
Thinking in AbstractionsKubernetes networking demands that we view networks as fluid, software-defined environments rather than fixed, hardware-bound infrastructures. This requires developing new mental models that:
Treat IP addresses as temporary and replaceable
Understand networking as a software-defined construct
Embrace the concept of network programmability
Embracing complexity as a Feature, Not a BugThe apparent complexity of Kubernetes networking isn't a design flaw—it's a feature that enables unprecedented flexibility and scalability. Successful practitioners learn to:
See complexity as an opportunity for innovation
Break down intricate systems into manageable components
Develop a holistic view of distributed architectures
Learning Strategies for Kubernetes Networking
Mastering Kubernetes networking is a continuous journey of learning and adaptation. Effective strategies include:
Hands-on Experimentation: Build small clusters, break things, and rebuild
Community Engagement: Participate in forums, attend conferences, join discussion groups
Continuous Learning: Stay updated with emerging technologies and best practices
Systematic Approach: Build mental frameworks for understanding network interactions
The Human Skill of Network Troubleshooting
Effective network troubleshooting in Kubernetes requires a unique blend of:
Technical debugging skills
Systems thinking
Patience and methodical investigation
Creative problem-solving
Conclusion: Embracing the Networking Frontier
Networking as a Critical Skill in Cloud-Native Development
Kubernetes networking is more than just a technical domain—it's a critical skill that separates good cloud-native practitioners from exceptional ones. As containerization and microservices architectures dominate, networking becomes a key differentiator in system design and performance.
Key Takeaways
Complexity is OpportunityThe challenges of Kubernetes networking are not obstacles but opportunities for deeper understanding and innovative solutions.
Continuous Learning is EssentialThe landscape of container networking evolves rapidly. Staying curious and adaptable is crucial.
Holistic Understanding MattersNetworking in Kubernetes isn't just about technical implementation and understanding system interactions, security, and performance.
Resources for Deeper Learning
For those eager to dive deeper into Kubernetes networking, consider exploring:
Books"Kubernetes Network Policy Recipes" by Chris Sanders
"Networking and Kubernetes" by Casey Dalessandro
"Kubernetes in Action" by Marko Lukša
Online CoursesLinux Foundation's Kubernetes Networking Deep Dive
Cloud Native Computing Foundation (CNCF) Networking Courses
Online platforms like Udemy and Pluralsight offer specialized Kubernetes networking tracks
Community ResourcesKubernetes SIG Network GitHub repository
Kubernetes Slack channels
Stack Overflow Kubernetes networking tags
Words of Encouragement
To the developers, DevOps engineers, and system architects navigating this complex landscape, embrace the challenge. Kubernetes networking is not a barrier to be overcome but a frontier to be explored. Each complex interaction you understand, each network policy you craft, and each distributed system you design brings you closer to mastering the art of cloud-native computing.
